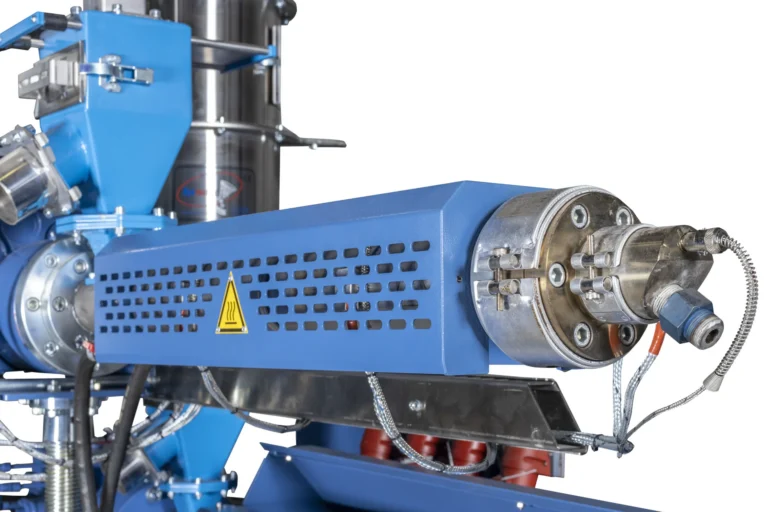

DRTS Pipe Extruders
DRTS provides quality plastic pipe extruders for Single Screw and Twin Screw extrusion solutions, with a focus on quality and customer customization. We custom design our pipe extruder screws to fit your material combination ensuring homogeneous mixture, better plastification and production efficiency. Our pipe extruders are crafted with top brand components to ensure production stability, product quality and machine durability. Our extruders can be used to produce PE, PVC, PPR and drip irrigation pipe.
What Does a Plastic Pipe Extruder Machine Do?
The pipe plastic extruder is the most important part of any pipe production line. You may call it the heart of your extrusion line. It heats, mixes, and pushes the melted plastics through the die head to produce fresh pipe. A good plastic extruder machine will ensure that you consistently produce quality pipe, allowing you to maximize efficiency and thus save money with high production speed and low scrap rates.

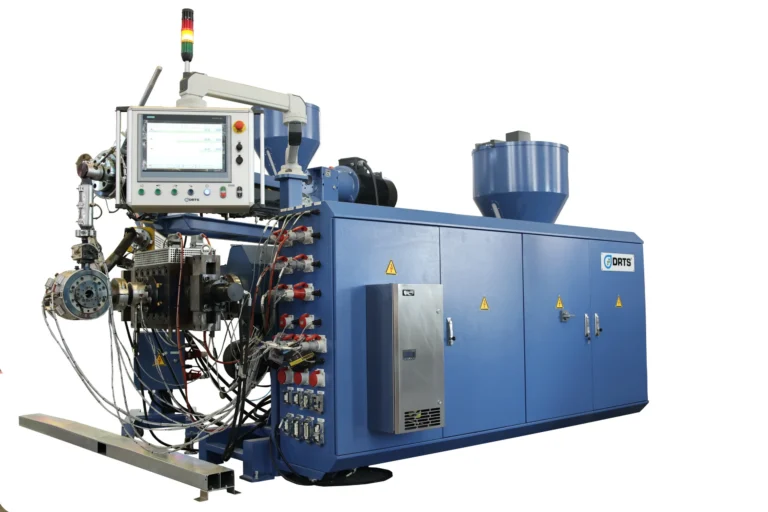

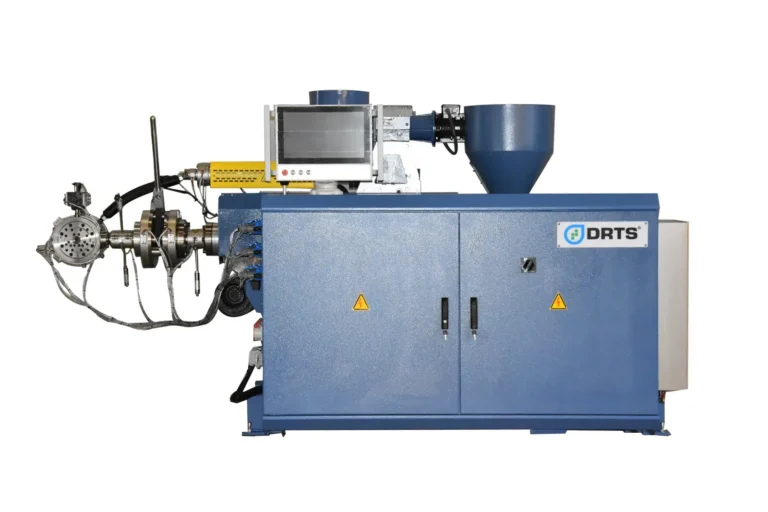

Customized Single & Twin Screw Extruder Machines
DRTS offers both single screw extruders for plain PE/PP and drip irrigation pipe as well as twin screw extruders for PVC extruder machine. Our Extruders are custom built to your needs and constructed from industry leading brand name components.
Why Do PVC Extruders Need Twin Screws?
PVC (powder material) extruders require twin screws to handle the extra wear and tear caused by the rough nature of PVC raw materials. Unfortunately, using PVC resin with a single screw extruder will cause accelerated damage to the screw and barrel and create inconsistent pipe production. Using Bi-metalic material for our Screw and Barrel further strengthens and assures our extruders life.

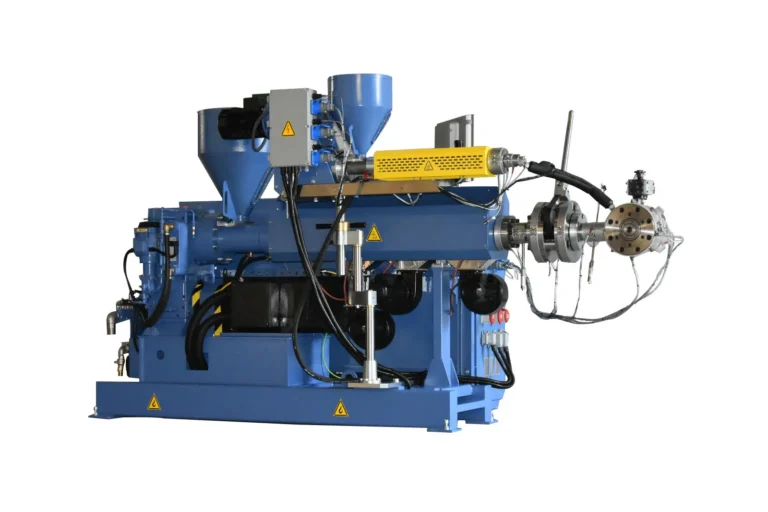

Our Extruder Machine Components
As an experienced pipe production line manufacturer for over 35 years, DRTS individually tested and approved global brands for the use of their components in our machinery. 95% of our extruder 3rd party components are European brands. This includes our Gearbox, Screw & Barrel, HMI control panel, Motors, Relays, Drives etc… Using these global brands not only assures our equipments’ quality and consistency, but also allows our customers to receive service for these parts directly from the manufacturer who have a very widespread presence around the world. This creates a network of spare parts supply and technical assistance like no other.
Tying in all these brands into one state of the art extruder is what makes DRTS equipment unique and so attractive.
Our Turnkey Extrusion Pipe Machinery
Our turnkey HDPE extrusion machine boost a range of production options. DRTS offers pipe production lines for pipes of 6mm-710mm (¼”-28”) diameter. We offer machinery to manufacture pipes of single layer, double layer and 3 layer pipes in many configurations. DRTS has the ability and experience to provide you HDPE extrusion machinery from what would be considered a basic line all the way to the most sophisticated production line. We integrate 3rd party machinery such as full gravimetric systems with line control, pipe measuring equipment, laser printers and much more.

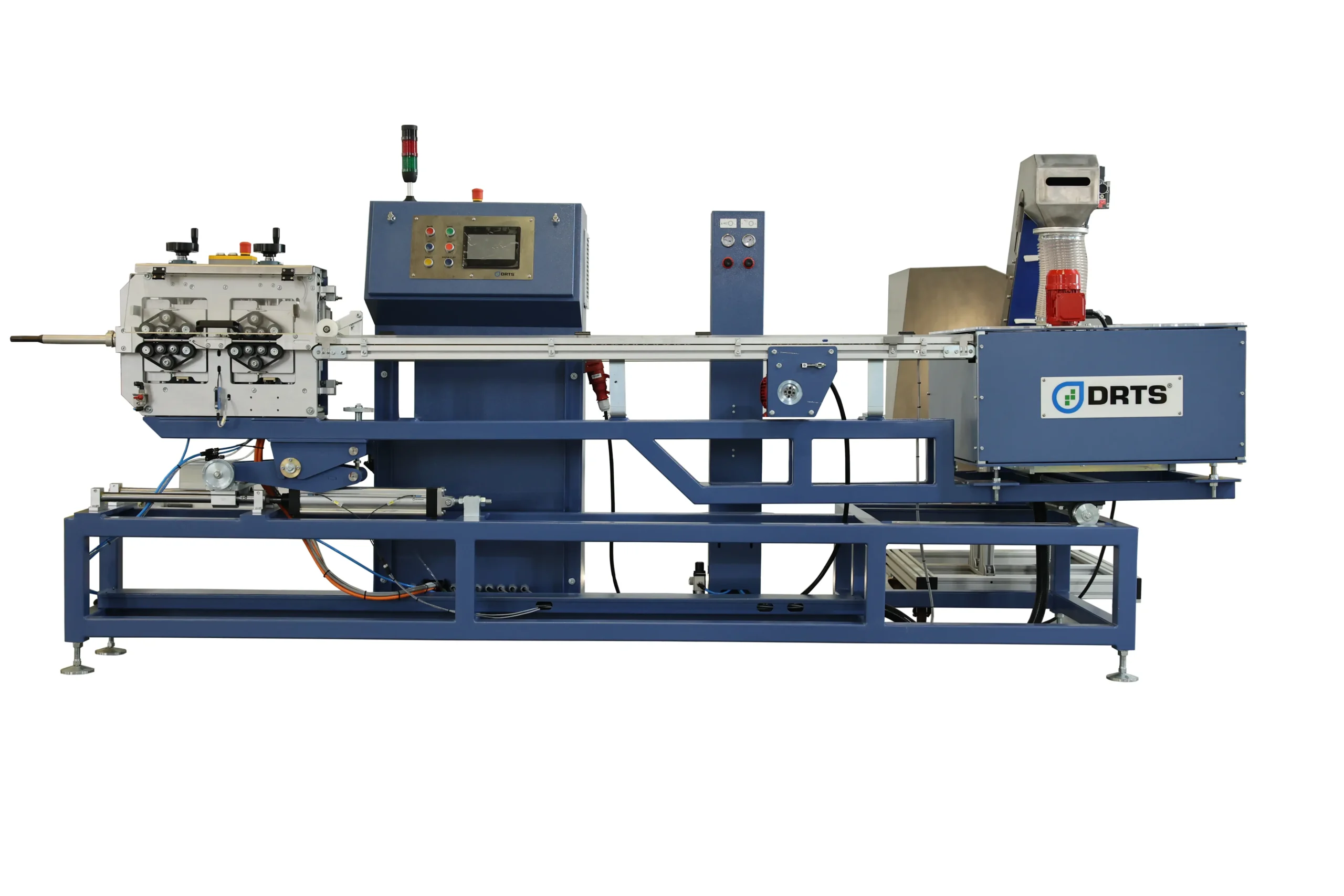

The same is also offered for our PVC, PP and drip irrigation pipe production lines. Our flexible and customizable approach allows DRTS to fit a production line for almost every budget and every customer.
Plastic Extrusion Basic Working Concept:
Whether you are producing HDPE pipes, PVC Pipes, Drip irrigation pipes or any type of plastic pipe, the extrusion process is very much the same.
The Plastic material which can come in both pellet form or powder form (In the case of PVC) are fed into the extruder at room temperature. Feeding the material can be done manually or automatically by using gravimetric systems, vacuum feeders etc…

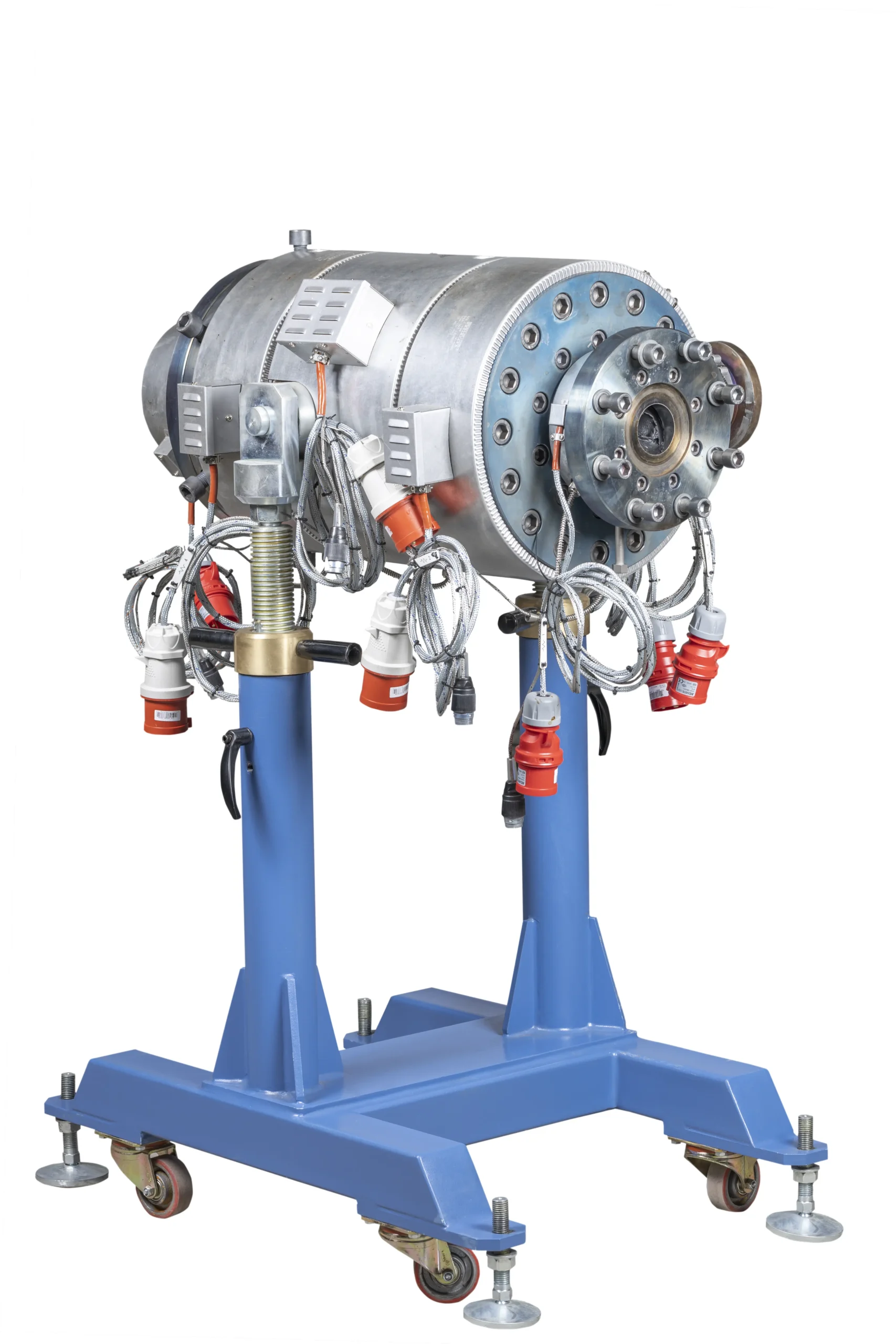

Once fed into the extruder throat, the heated Barrel melts the plastic material and changes it from a solid state to molten liquified plastics. The Screw inside the barrel rotates to create friction, mixing and generating further heat while pushing the material towards the Extruder’s tip. The extruder tip/flange is directly connected to the Die head or first goes through a screen changer. The die head is what makes the molten plastic form into the desired shape. This is where you set the tooling for the desired pipe size.

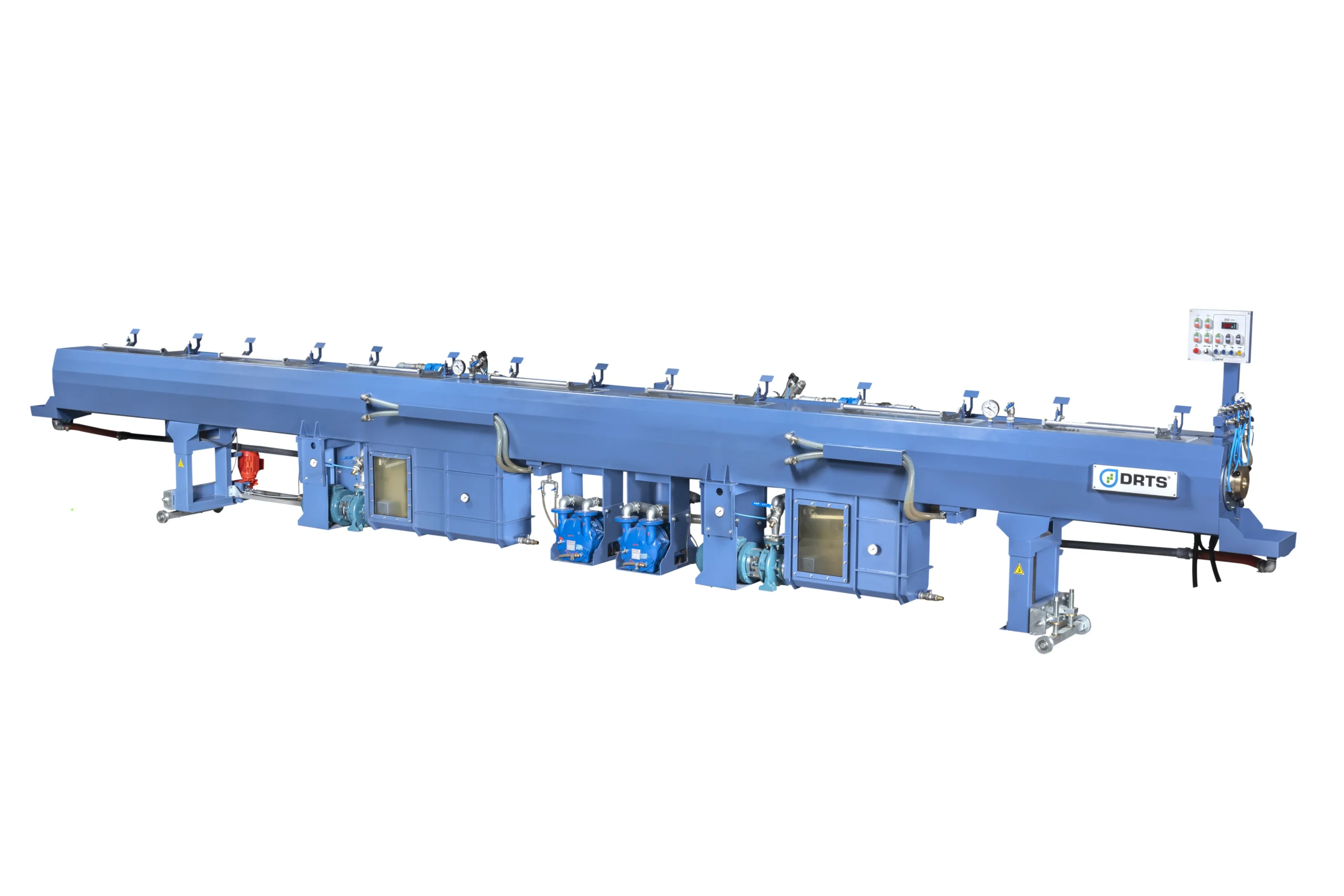

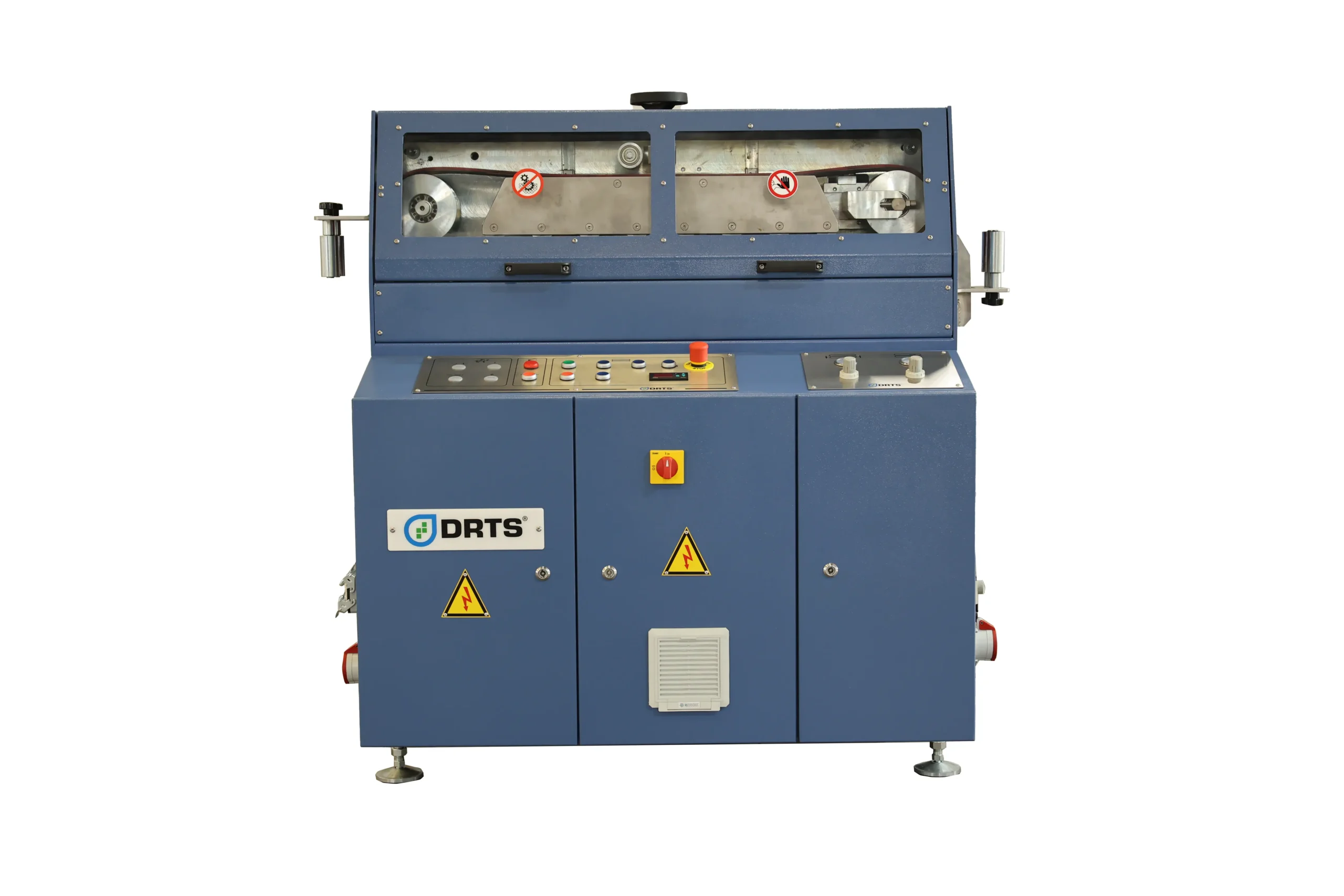

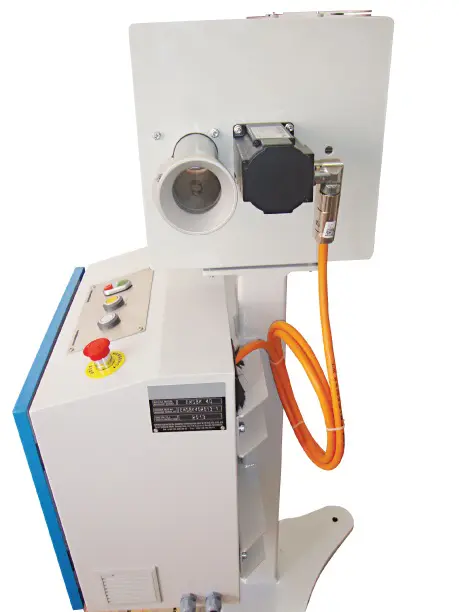

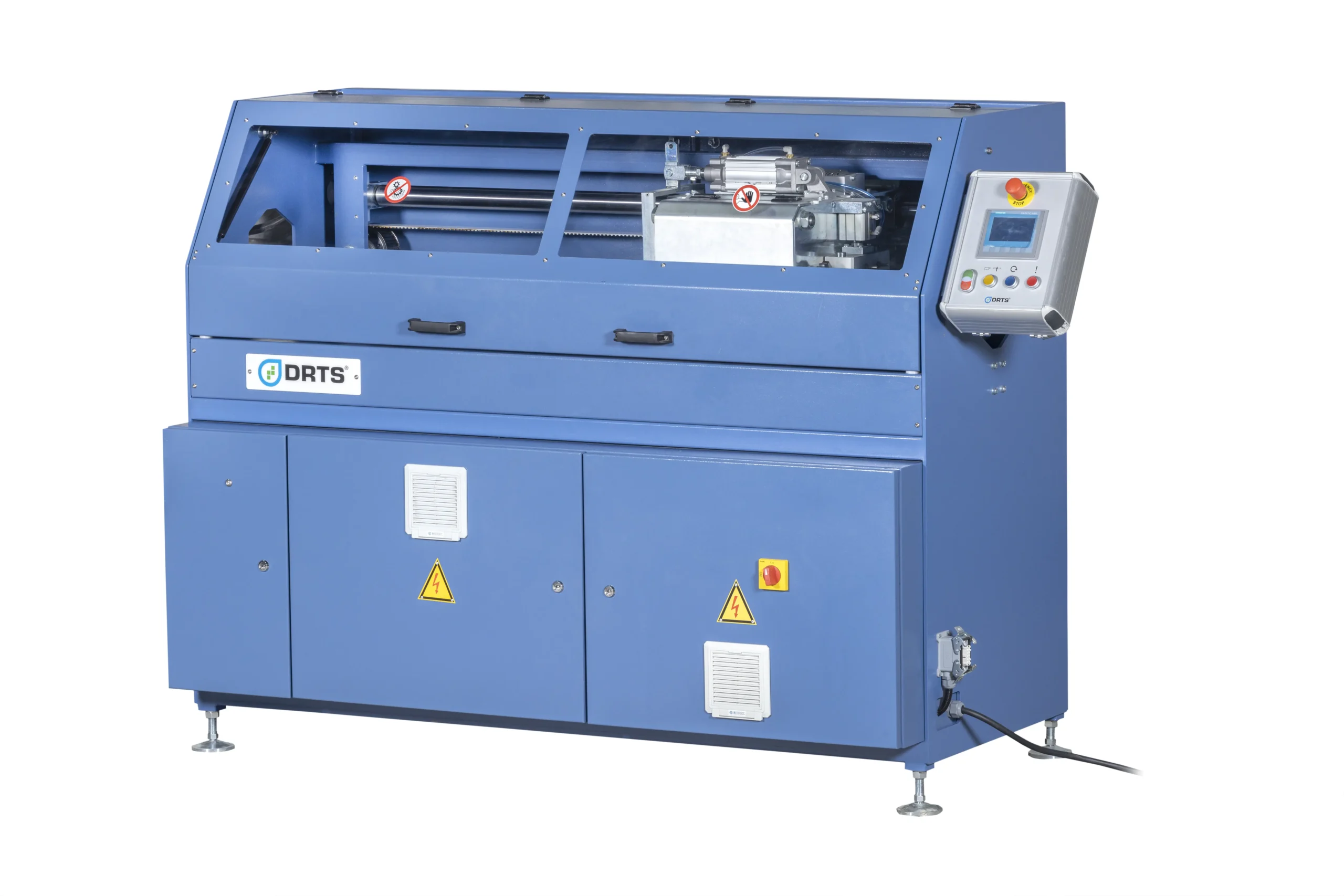

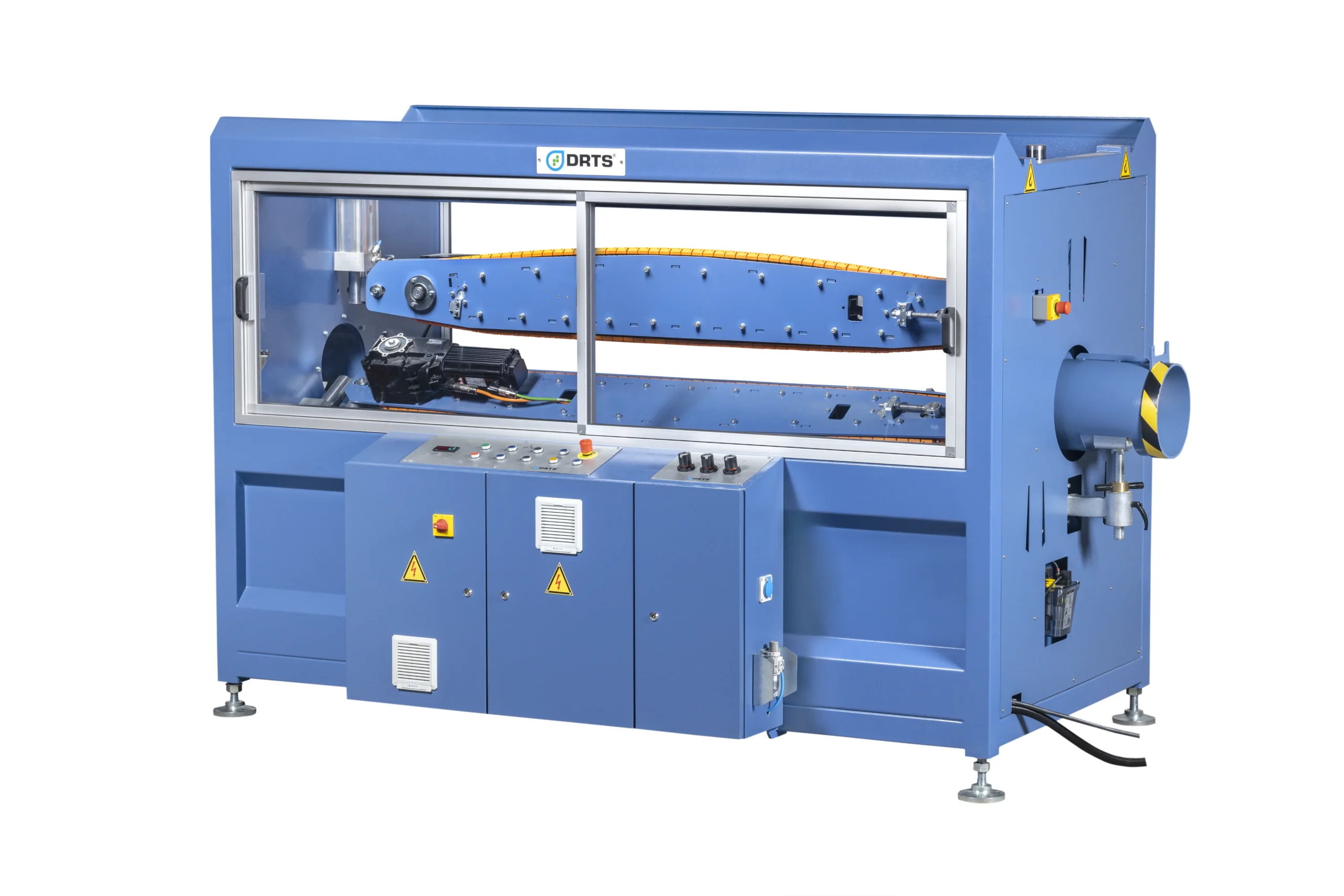

Further down beyond the die head is what is considered the downstream equipment which consists of a vacuum tank-to maintain the pipe shape, cooling tanks to further cool down the pipe and let it set and harden, Puller to pull the pipe, cutter- to cut the pipe to the desired length, Coiler- to coil the pipe or tipping table to collect the pipe in cases where its not coiled.
As an extruder machine manufacturer, DRTS uses high quality European components to ensure quality plastic pipe production and equipment longevity. Some key components of a plastic pipe extrusion line include the barrel, screws, motor, heater bands, and control panel. Our Reiloy barrel is where the raw materials are fed and heated to the desired temperature for extrusion. The screws inside the barrel rotate and push the molten plastic through the die to form the desired shape of the pipe. The motor provides the power to rotate the screws, while the heater bands maintain the temperature of the barrel. The control panel allows operators to adjust settings such as temperature, speed, and pressure to ensure optimal production. Overall, these components work together to create high-quality plastic pipes efficiently and effectively.
Pipe Extruder Components

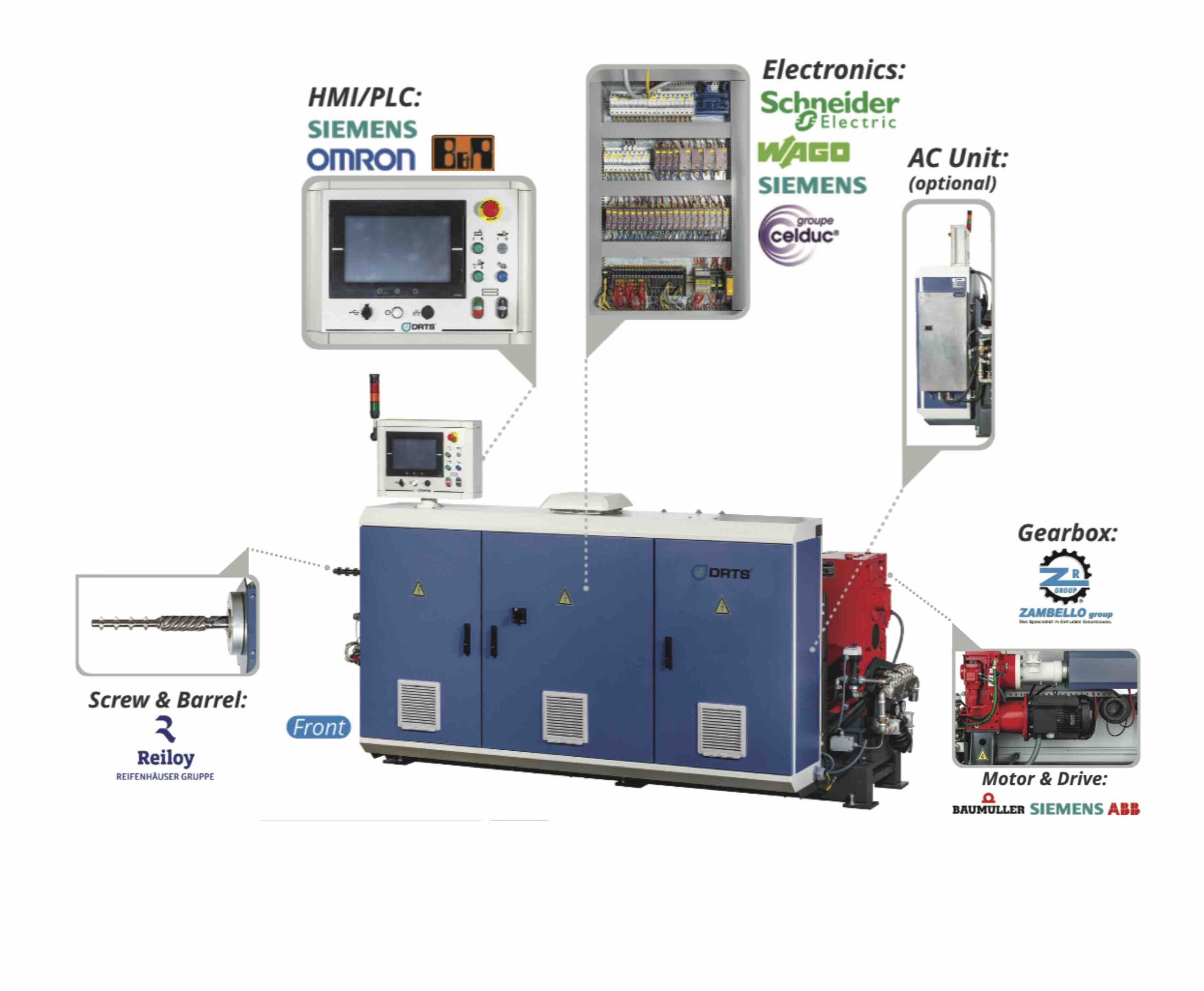

Gearbox Extruder Features a Zambello Gearbox & your Choice of ABB/Siemens/Baumuller Motors. | Screw & Barrel Our Extruders Utilize a Bimetallic Screw & Barrel from Reiloy. |

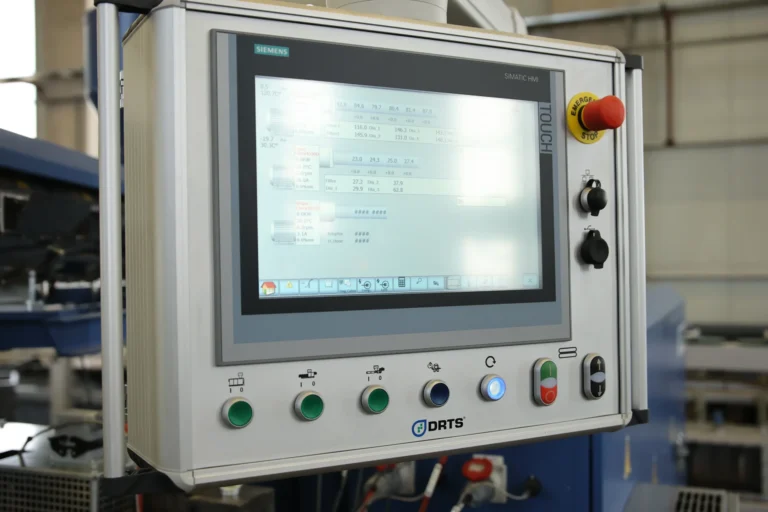

HMI / PLC Our Extruder Have a 12 Inch HMI comprised of components from B&R / Siemens / Omron. | Electronics DRTS Pipe Extruders Exclusively Feature Industry Leading Electronics Brands. |
Extruder Component Breakdown
Screw & Barrel: Bimetallic (Germany) or Nitreated DIN 1.8850 | Main Motor: ABB / Siemens / Baumuller | Driver: ABB / Siemens / Baumuller | HMI/PLC Control: 12” B&R/Siemens/Omron |
PC Control: Optional 19” | Gearbox: Zambello – Italy | Heating Elements: Ceramic Heaters + Aluminium Separators | Melt-Pressure Sensor: Gerfan – Italy |
Electric Components: Wago – ABB – Siemens – Schneider | Solid State Relays: Celduc / France | Air Condition: Optional |
Learn More About our Extruder Machines
What to Look for in an Extruder Machine
The Importance of a Bimetallic Extruder Screw & Barrel
DRTS Extruders & Industry 4.0 Smart Manufacturing Standards
3 Things to Consider When Choosing an Extruder Machine Manufacturer
Single Screw Extruders
Models | Screw Diameter | Screw L/D | Motor Power (Kw) | Output (Kg) | Download |
---|---|---|---|---|---|
DR-SS-30/25D | 30 | 25 | 1.1 - 5 Kw | 5 - 15 Kg | Datasheet |
DR-SS-45/30D | 45 | 30 | 15 Kw | 60 Kg | Datasheet |
DR-SS-45/36D | 45 | 36 | 30 - 53 Kw | 120 - 180 Kg | Datasheet |
DR-SS-60/36D | 60 | 36 | 52 - 59 Kw | 200 - 300 Kg | Datasheet |
DR-SS-75/36D | 75 | 36 | 110 - 160 Kw | 300 - 600 Kg | Datasheet |
DR-SS-90/36D | 90 | 36 | 250 Kw | 800 - 850 Kg | Datasheet |
DR-SS-110/36D | 110 | 36 | 300 Kw | 1100 - 1200 Kg | Datasheet |
Twin Screw Extruders
Models | Screw Diameter | Screw L/D | Motor Power (Kw) | Output (Kg) | Download |
---|---|---|---|---|---|
DR-DS-55/20D | 55 | 20 | 15 Kw | 70 - 80 Kg | Datasheet |
DR-DS-67/22D | 67 | 22 | 22 Kw | 120 Kg | Datasheet |
DR-DS-68/25D | 68 | 25 | 28 Kw | 180 Kg | Datasheet |
DR-DS-75/25D | 75 | 25 | 30 Kw | 250 Kg | Datasheet |
DR-DS-90/25D | 90 | 25 | 45 Kw | 350 Kg | Datasheet |
DR-DS-110/25D | 110 | 25 | 110 Kw | 600 Kg | Datasheet |
DR-DS-135/25D | 135 | 25 | 120 Kw | 9000 - 1000 Kg | Datasheet |
