Haul Off (Puller)

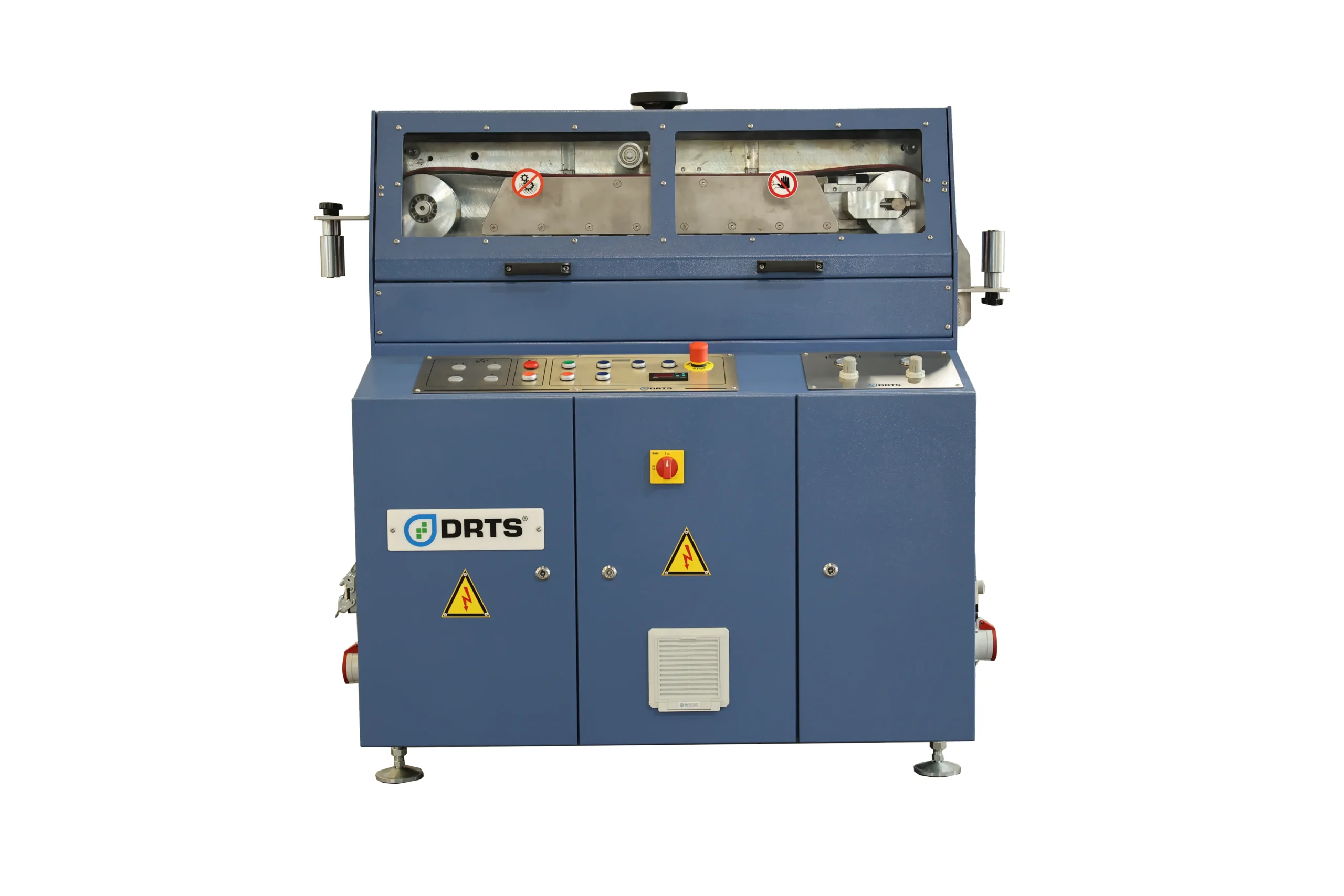

DRTS Hybrid Hauloff

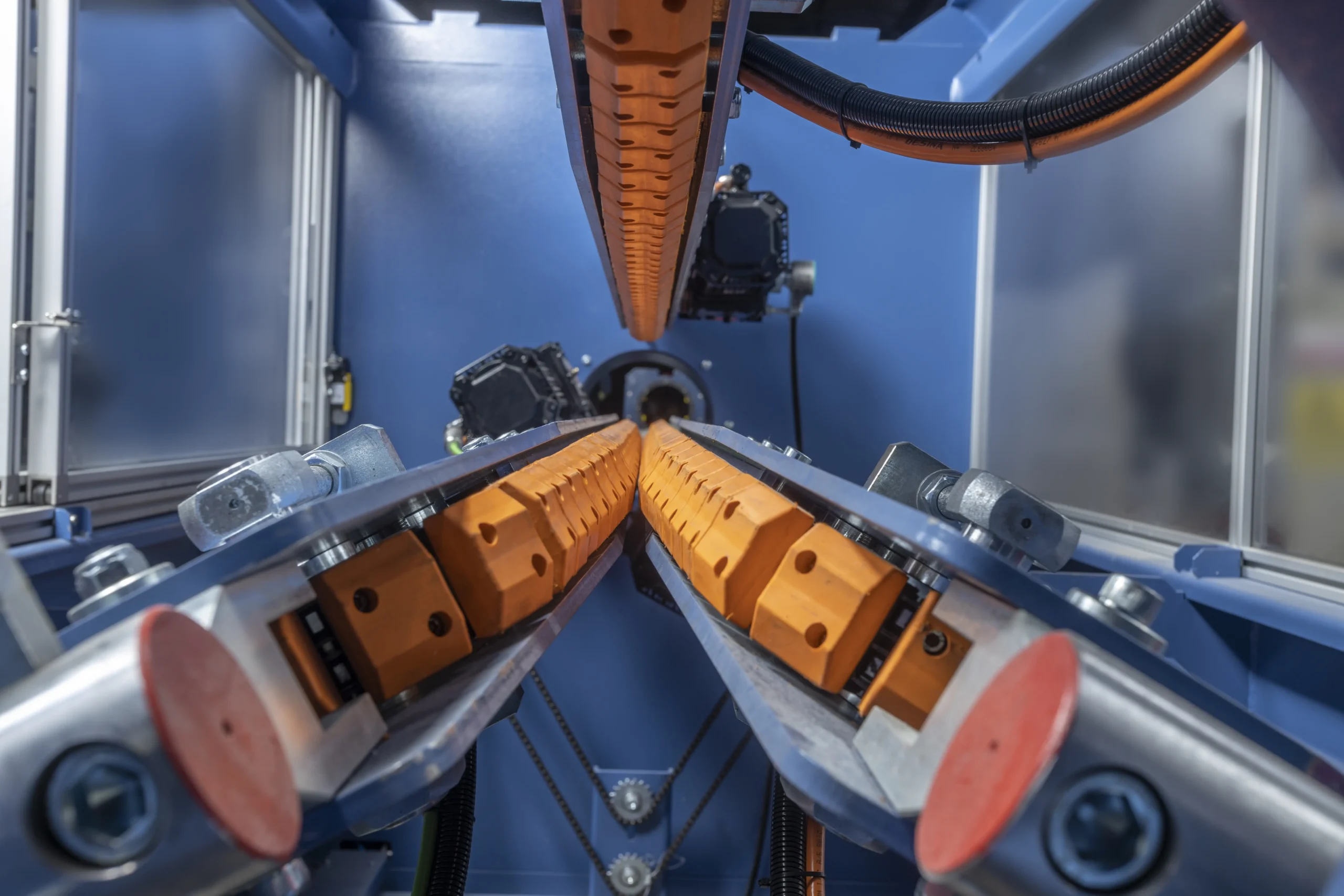

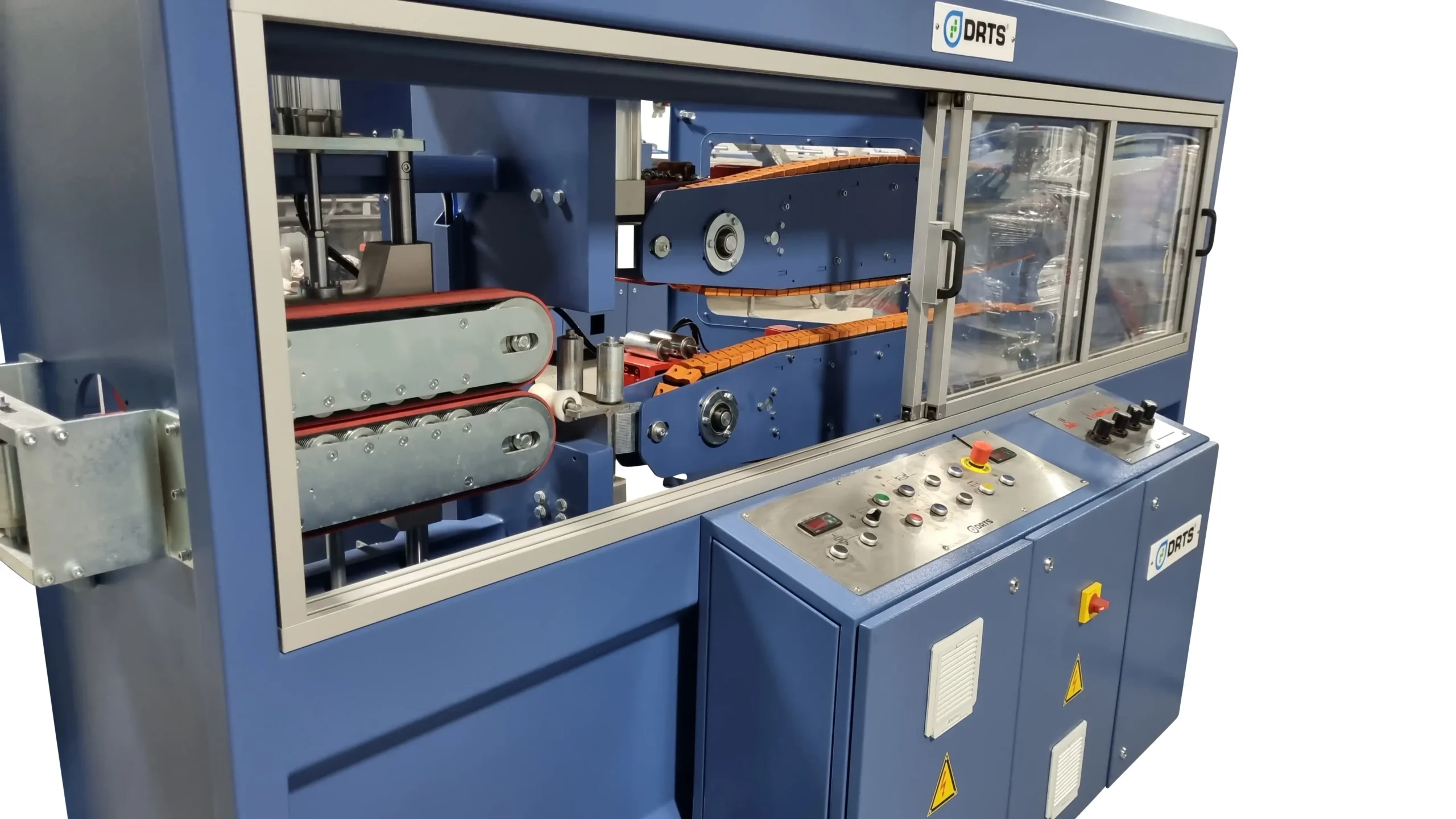

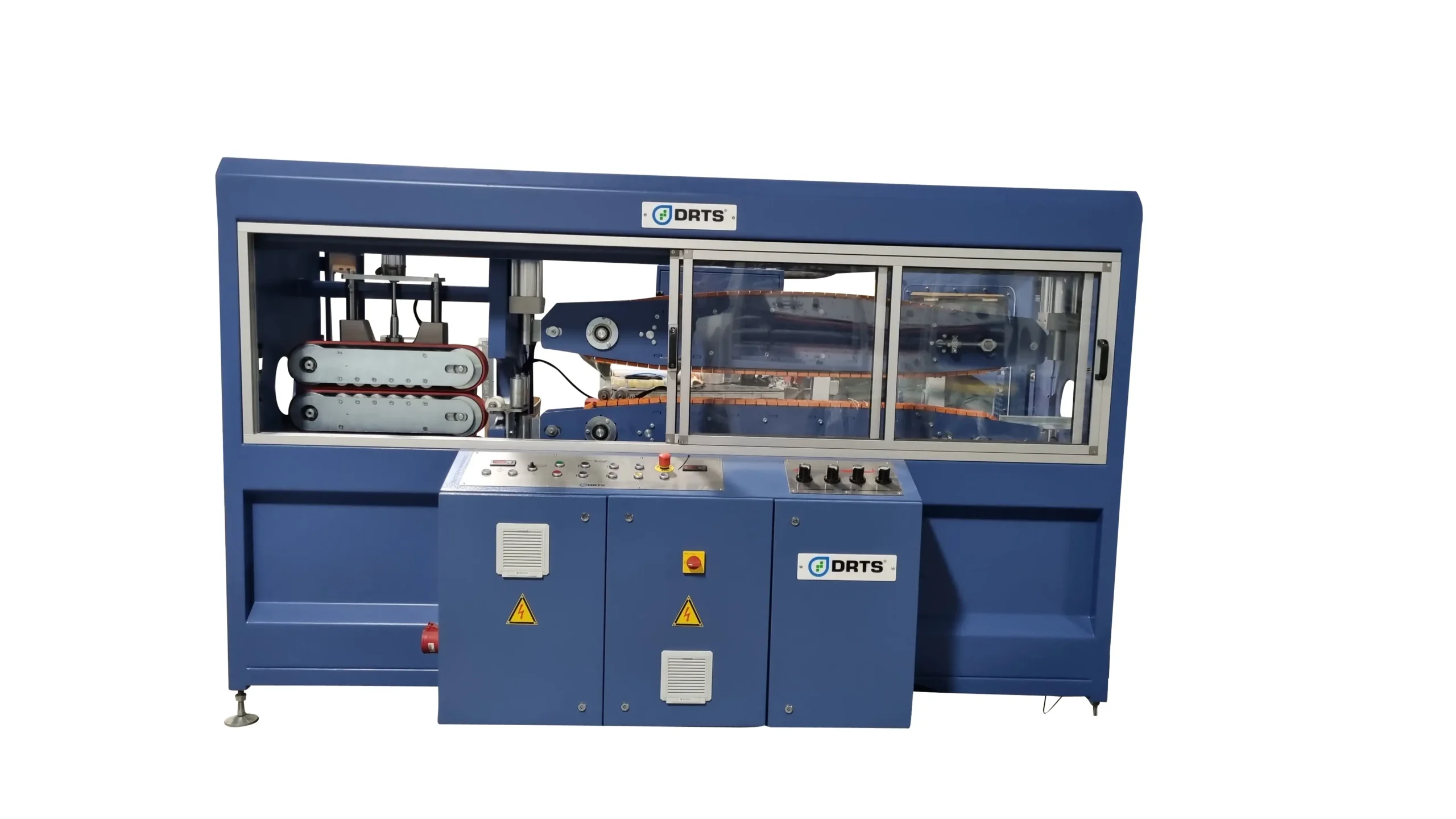

The innovative design of the DRTS Hybrid Pipe Haul-Off / Puller will add versatility and efficiency to your pipe manufacturing process. With our unique design we are overcoming a major bottleneck in pipe production. In pipe production lines of 16-63mm and 20-110mm, the production speeds of the smaller sizes (up to 32mm) are affected by the inability of the puller (designed for the largest size in the specific line) to run at higher speeds. For this we have designed our Hybrid puller, which is actually 2 pullers in 1 frame all controlled by a single HMI control panel. For smaller pipes (16-32mm) a dual lintex belt puller is used that can run at speeds of up to 100 meters per minute, which allows smaller pipe diameter production at higher speeds and increased efficiency. When manufacturing pipe at larger diameters (40-110mm) the machine automatically uses the double/triple arm caterpillar belt system that has the necessary torque without the need of machine change over. Read More

Key Benefits

• Single Machine for wide range of pipe diameters
• High Speed Pulling for up to 32mm
• High Torque for Larger Diameter up to 110 mm
• Elliminates Change Over of Machinery – Saving Time & Labor
