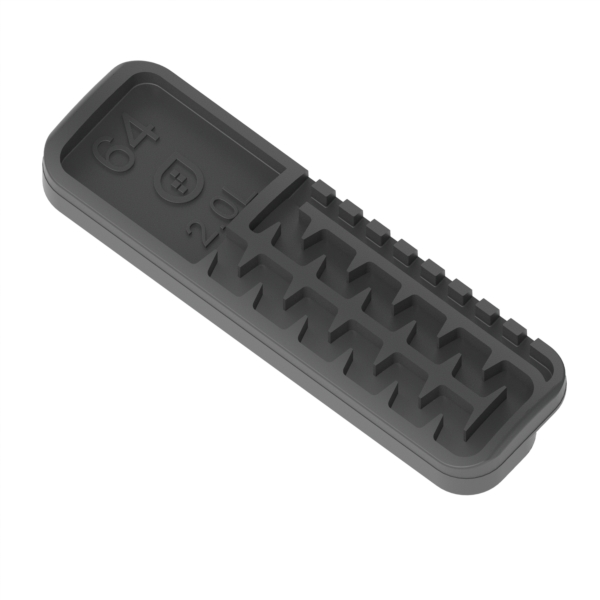

Low Flow Miniature Flat Dripper
This super compact emitter for agriculture is the most cost effective dripper for high speed production of thin walled driplines. An efficient turbulent labyrinth provides effective performance and a unique filtration design gives excellent clogging resistance.
Get a Price Quote
Learn more about pricing for the Nano/Micro dripper here.
COST EFFECTIVE HIGH SPEED PRODUCTION
Due to the compact design of the Nano dripper its production lines are the world’s fastest at 250 meters per minute.
COMPETE WITH TAPE
Thin walled dripline using the Nano dripper is competitive with the cost of continuous strip tape while providing a higher quality injected labyrinth.
With a CV of <3%, the Nano dripper’s wide turbulent flow labyrinth, ensures consistent turbulence through the entire flowpath and reducing settling of suspended solids.
HIGHLY CLOG RESISTANT
A wide flowpath cross-section and large filtration area create an efficient dripper with excellent clogging resistance
BUILT-IN QUALITY AND DURABILITY
Constructed with 100% premium virgin polyethylene and additives for resistance to UV degradation and damage caused from commonly used chemicals and fertilizers.
SUITABLE FOR MANY DIAMETERS
Nano is an asymmetrical dripper suitable for 12mm to 20mm pipe. Suitable for wall thicknesses from 5mil to 13 mil and a maximum working pressure of 1.5 bar

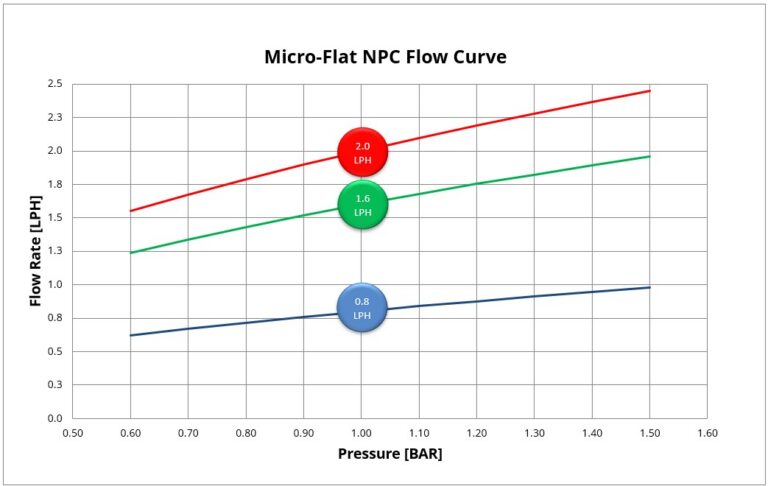

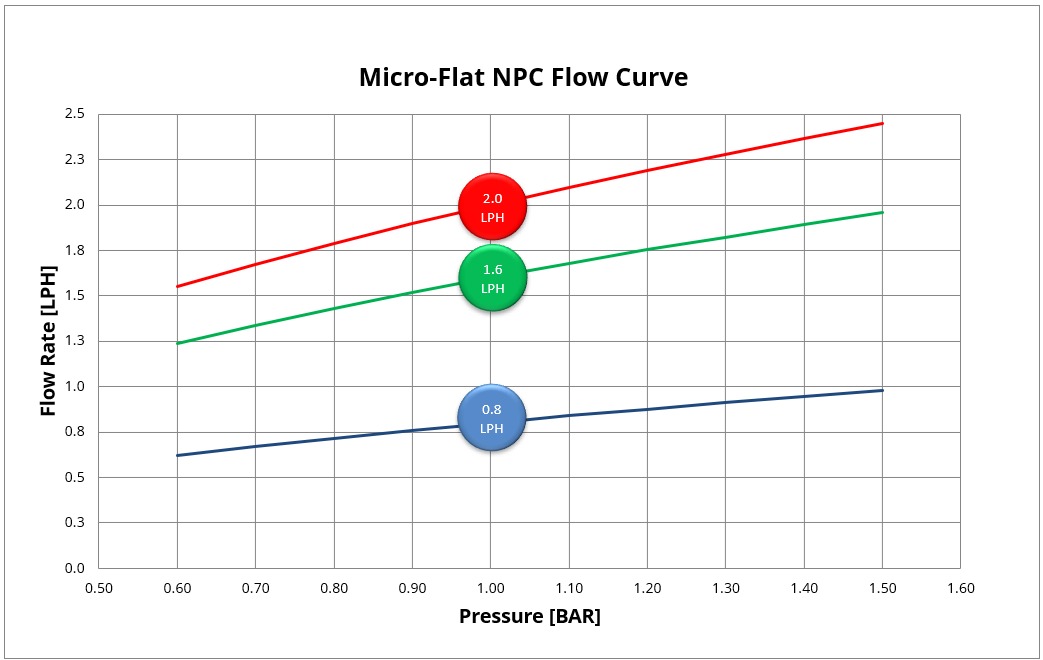

0.6, 1.0, and 1.6 LPH
- Box – 50,000 drippers
- 20′ container – 66,000,000 drippers
- 40′ container – 132,000,000 drippers
