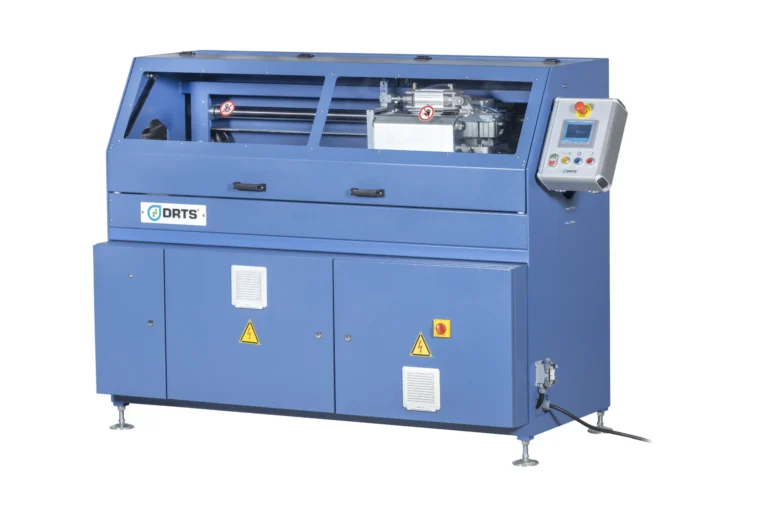

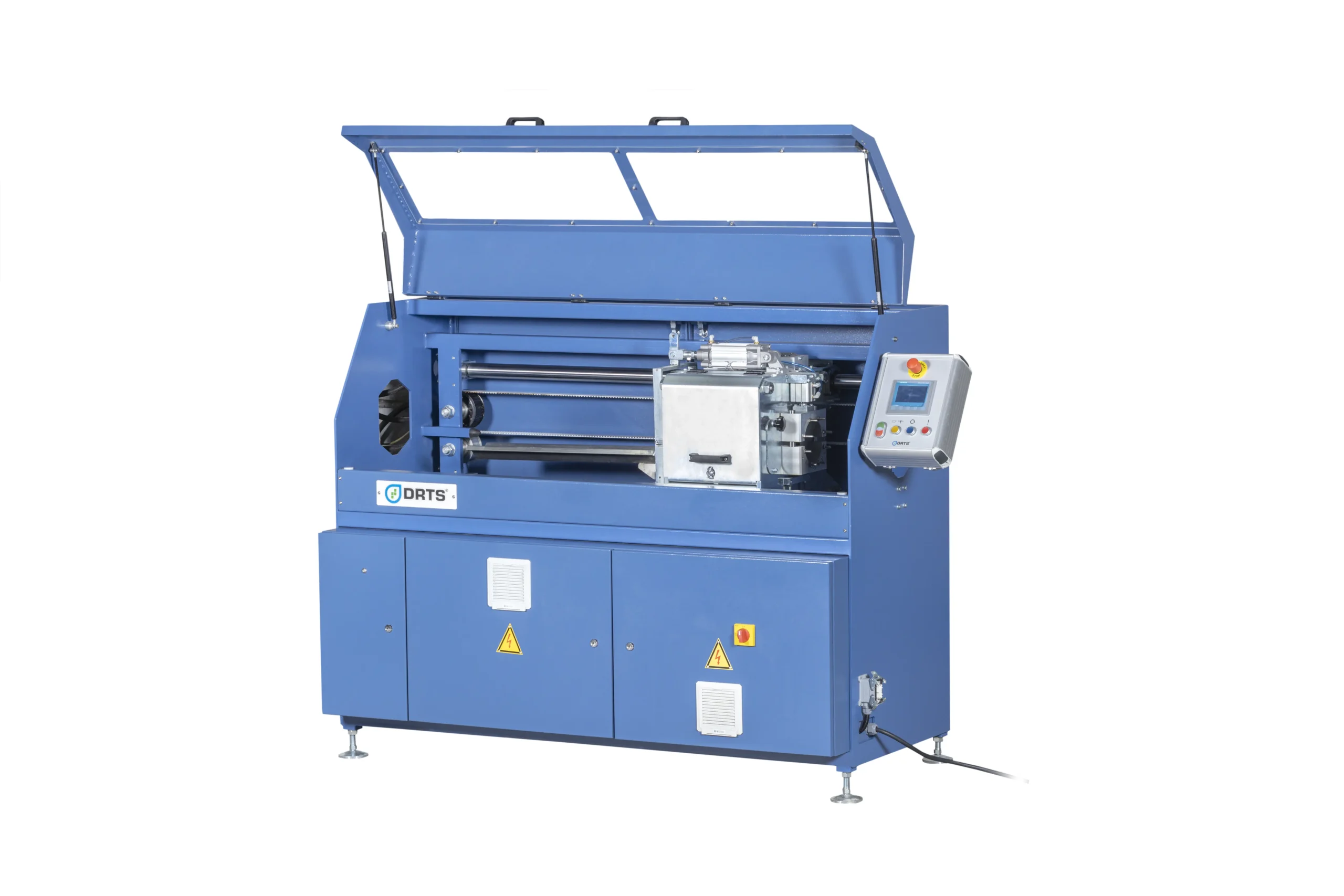

DRTS Pipe Cutter
The DRTS Pipe Cutters are specifically designed for PE, PPR and PVC pipes from 16mm – 630mm (see drip irrigation cutters for diameters 6mm – 32mm). Our cutters are chipless for PE and PPR pipes up to 250mm in diameter and comes with a chamfer option for PVC pipes ranging from 40mm – 630mm.

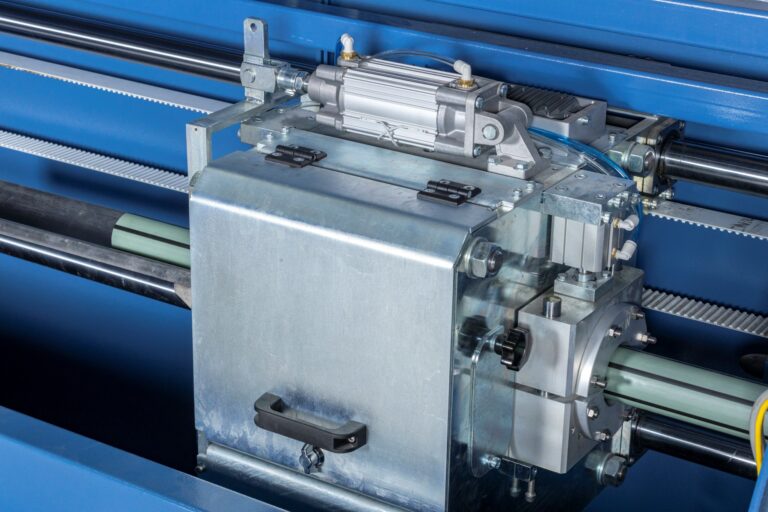

Our cutters are in compliance with modern safety standards and manufactured to operate in complete synchronization with your extrusion line. The trolley movement is driven either by a servo motor or by pneumatics and the pipe cutting diameter does not require mechanical adjustment but, can be set using the PLC control system.
|Model||Pipe Dia (mm)||Max Cutting Thickness||Cutting Speed (m/min)||Download|
|DMPT 75||16 - 75 mm||PE:15 mm PVC: 4 mm||30 m/min||Datasheet|
|DMPT 160||50 - 160 mm||PE: 22 mm PVC: 10 mm||22 m/min||Datasheet|
|DMPT 250||50 - 250 mm||PE: 28 mm PVC: 18 mm||12 m/min||Datasheet|
|DMPT 400||63 - 400 mm||PE: 42 mm PVC: 25 mm||8 m/min||Datasheet|
|DMPT 630||160 - 630 mm||PE: 60 mm PVC: 25 mm||4 m/min||Datasheet|
