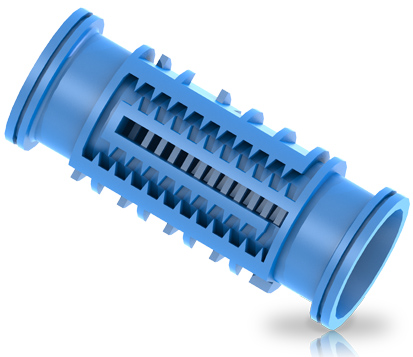

Sandguard™
Compact Non-PC Dripper with Excellent Clogging Resistance
Specially developed for well water the Sandguard dripper employs an extra-large flowpath cross-section, long labyrinth and elevated filter to create an agricultural dripper with superb clogging resistance.
Get a Price Quote
Learn more about pricing for the Sandguard™ dripper here.
EXCEPTIONALLY UNIFORM FLOW
Dripper CV of <5% ensures flow uniformity between drip outlets.
COMPACT
An efficient dripper design allows a long flowpath while maintaining an economical overall size.
HIGH PERFORMANCE

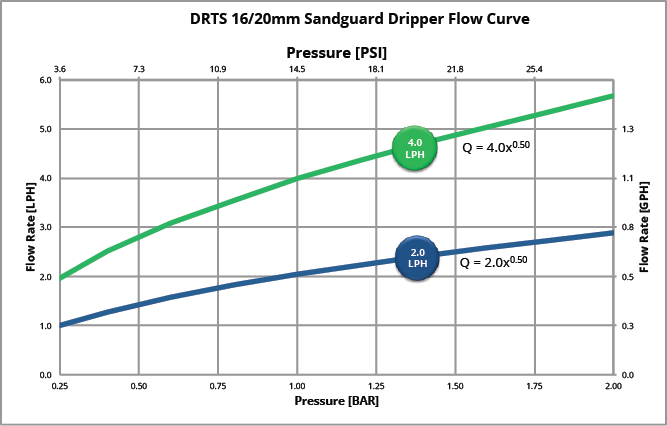

Longer pipe runs with <0.5 emitting exponent and 2:1 pressure loss to flow loss.
EXTREMELY CLOG-RESISTANT
The long labyrinth and large cross-sectional design ensure that gradual and unavoidable sedimentation on the labyrinth surface do not clog the emitter.
ELEVATED FILTER
The elevated filter draws from water that is closer to the center of the pipe where water travels at high velocity. The higher velocity helps keep the filter surface clean while the elevated filter entrance inhibits solids from settling on it between flow cycles, regardless of dripper orientation in the pipe.
EASE OF MANUFACTURING
Increased OD enables high-accuracy and higher speed perforation.
BUILT-IN QUALITY AND DURABILITY
Constructed with 100% premium virgin polyethylene and additives for resistance to UV degradation and damage caused from commonly used chemicals and fertilizers.
FLOWS AVAILABLE:
16/20mm diameter available in 2.0 and 4.0 LPH
SHIPPING QUANTITIES:
16mm
- Box – 3,500 drippers
- 20′ container – 1,820,000 drippers
- 40′ container – 4,200,000 drippers
20mm
- Box – 2,500 drippers
- 20′ container – 1,300,000 drippers
- 40′ container – 3,000,000 drippers
